The AD8353ACPZ is a broadband RF Gain Block operates at frequencies from 1MHz up to 2.7GHz. The AD8353 is a fixed-gain linear amplifier intended for use in a wide variety of wireless devices, including cellular, broadband, CATV and LMDS/MMDS applications. By taking advantage of ADI&#039;s high performance, complementary Si bipolar process, these gain blocks provide excellent stability over process, temperature and power supply. This amplifier is single-ended and internally matched to 50R with a return loss of greater than 10dB over the full operating frequency range. The AD8353 provides linear output power of 9dBm with 20dB of gain at 900MHz when biased at 3V and an external RF choke is connected between the power supply and the output pin. The DC supply current is 42mA. At 900MHz, the output third-order intercept (OIP3) is greater than 23dBm and is 19dBm at 2.7GHz. The noise figure is 5.3dB at 900MHz. The reverse isolation (S12) is -36dB at 900MHz and -30dB at 2.7GHz.

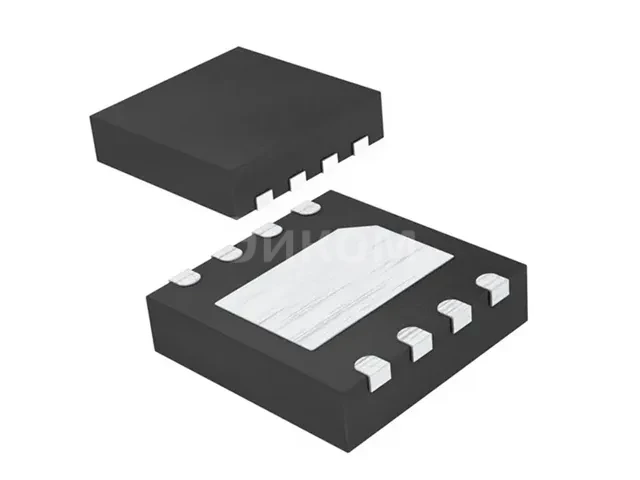

AD8353ACPZ

AD8353ACPZ

Характеристики AD8353ACPZ
